EM6355 Connecting the camera to your network using a network cable

  • Atualizado
Este artigo não está disponível no seu idioma. O idioma de origem original é mostrado abaixo.

A few short and simple steps are necessary to connect and assign the camera, and to
enjoy the use of the camera. Use the following steps to connect the camera.

We advise to connect the camera first with a network cable. Once the camera works
correctly, you can use your wireless network.
You will need the following components to connect your EM6355 to your network.


Please connect the accessories to the EM6355 correctly, including the power adapter
and Ethernet cable. And connect the other end of the Ethernet cable to your network.
Usually, this Ethernet cable is plugged into a router or an Ethernet switch. Since the
default settings of the EM6355 use DHCP the EM6355 should be connected to the
Internet immediately. The Internet status LED should be lit constantly.

There are two ways to connect the camera to your wired network.
Please choose the best option for your setup.

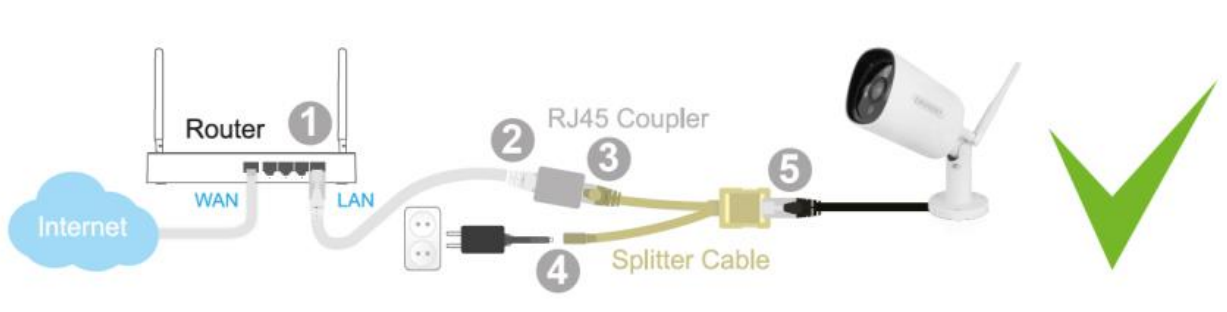

Option 1 Power adapter is plugged near the EM6355.

1. Connect a Ethernet cable (max. 50m) to your router/modem/switch.
2. Connect the other end of the Ethernet cable to the “RJ45 coupler”.
3. Connect the Ethernet plug of the Splitter cable to the “RJ45 coupler”
4. Connect the supplied power adapter to the supplied “Splitter cable”.
5. Connect the Power + Ethernet plug from the EM6355 to the “RJ45 coupler”.


Note ! : If you wish to use the EM6355 wirelessly you will need to remove the Ethernet
cable between the router/modem/switch and the Splitter cable after successfully
setting up the wireless connection. The splitter cable and power adapter needs to be
connected to the EM6355 to supply the camera with power.

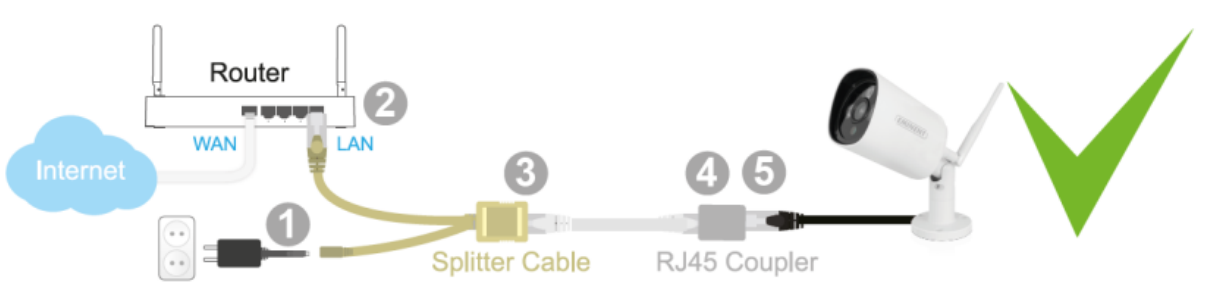

Option 2 Power adapter is plugged near the router/modem/switch.

1. Connect the supplied power adapter to the supplied “Splitter cable”.
2. Connect the Ethernet plug of the “Splitter cable” to the router/modem/switch..
3. Connect a Ethernet cable (max.50m) to the “Splitter cable”.
4. Connect the other end of the Ethernet cable to the “RJ45 coupler”.
5. Connect the Power + Ethernet plug from the EM6355 to the “RJ45 coupler”.

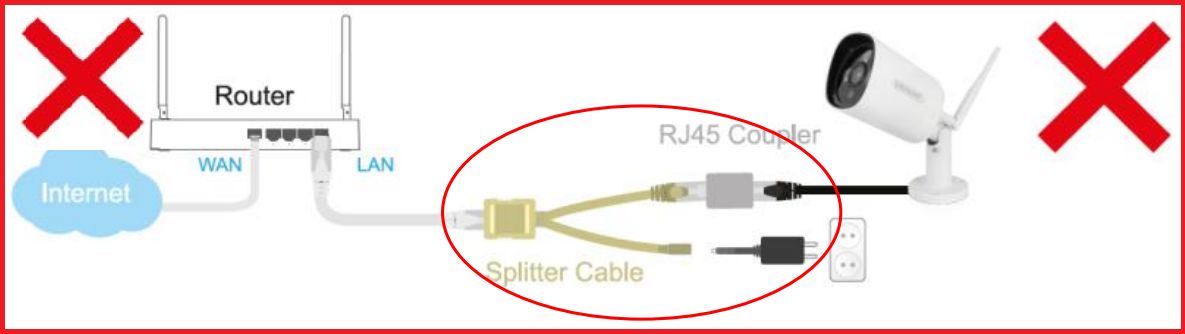

Warning ! : Do NOT connect the Splitter Cable as illustrated below this will damage your
router/modem/switch.
