EM6325 CamLine Pro PC software, Playback local recordings

  • Aggiornato
Questo articolo non è disponibile nella tua lingua. La lingua di partenza originale è mostrata di seguito.

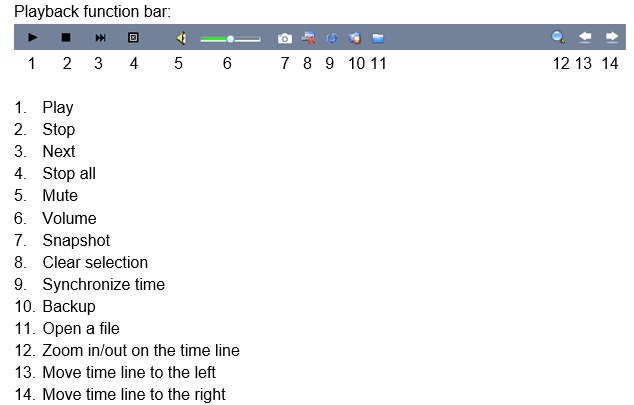

Open the Playback feature by pressing the EM63XX_PC_CamLine_Pro_terugspeelknop.png button.

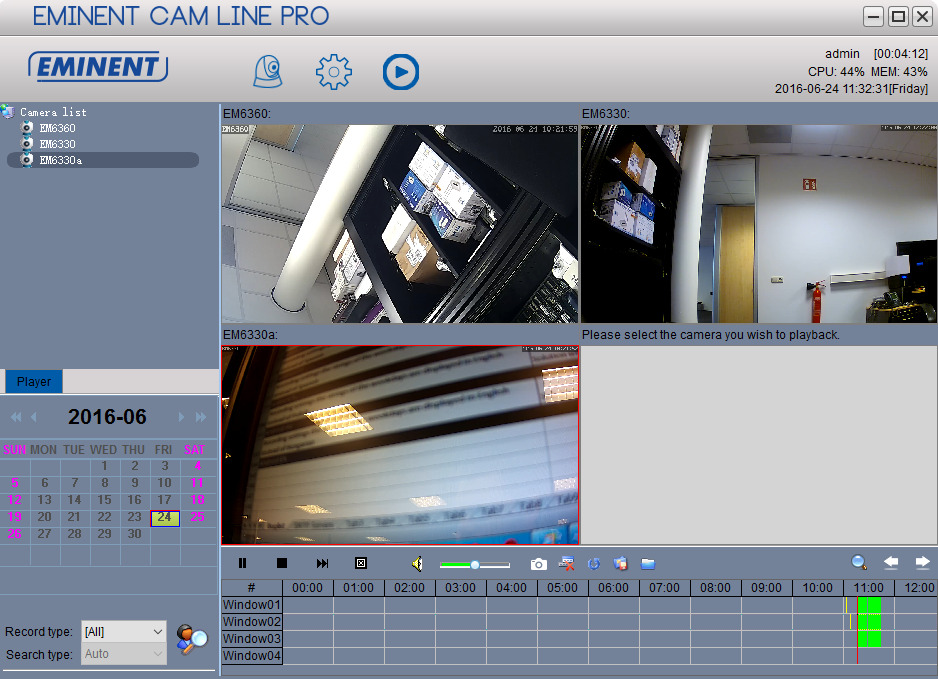

In this part you can playback the recordings stored on your PC.

  • First make sure the camera(s) you wish to playback is selected (double click the camera or drag and drop the camera in an available screen).
  • (Optional) If desired you can select a type of recording from the dropdown list “Record type” in the left lower corner.
  • Press EM63XX_PC_CamLine_Pro_search_magnify.png button to start searching for local recordings.
  • In the calendar you will see dates marked in green these are the days where the CamLine Pro software has found local recordings.


  • Select the day you wish to playback.
  • Below the camera overview you will see different markings in the time bar, these are markings of the time periods the CamLine Pro software has found local recordings.


  • Drag the red line to the time frame you wish to playback the recording.

The markings marked as GREEN are the scheduled recordings.

The markings marked in YELLOW are the manual recordings.

To be able to select a manual recording (marked in yellow) successfully we advise to use a minimum period of 1 minute per recording.

  • The recording will be played in the selected frame.
