EM7680 Audio setup

  • Ενημέρωση
Αυτό το άρθρο δεν είναι διαθέσιμο στη γλώσσα σας. Η αρχική γλώσσα πηγής εμφανίζεται παρακάτω.

If your EM7680 is connected to a AV receiver by HDMI or S/PDIF connection, you will need to “enable passthrough” so your AV receiver will be able to decode the audio streams such like DTS or Dolby Digital.



Before you power on the TV streamer, please make sure to setup properly the connection between TV and AV receiver as described in the following steps.



1. Connect the EM7680 with an HDMI and/or S/PDIF cable via your Home cinema set to your TV

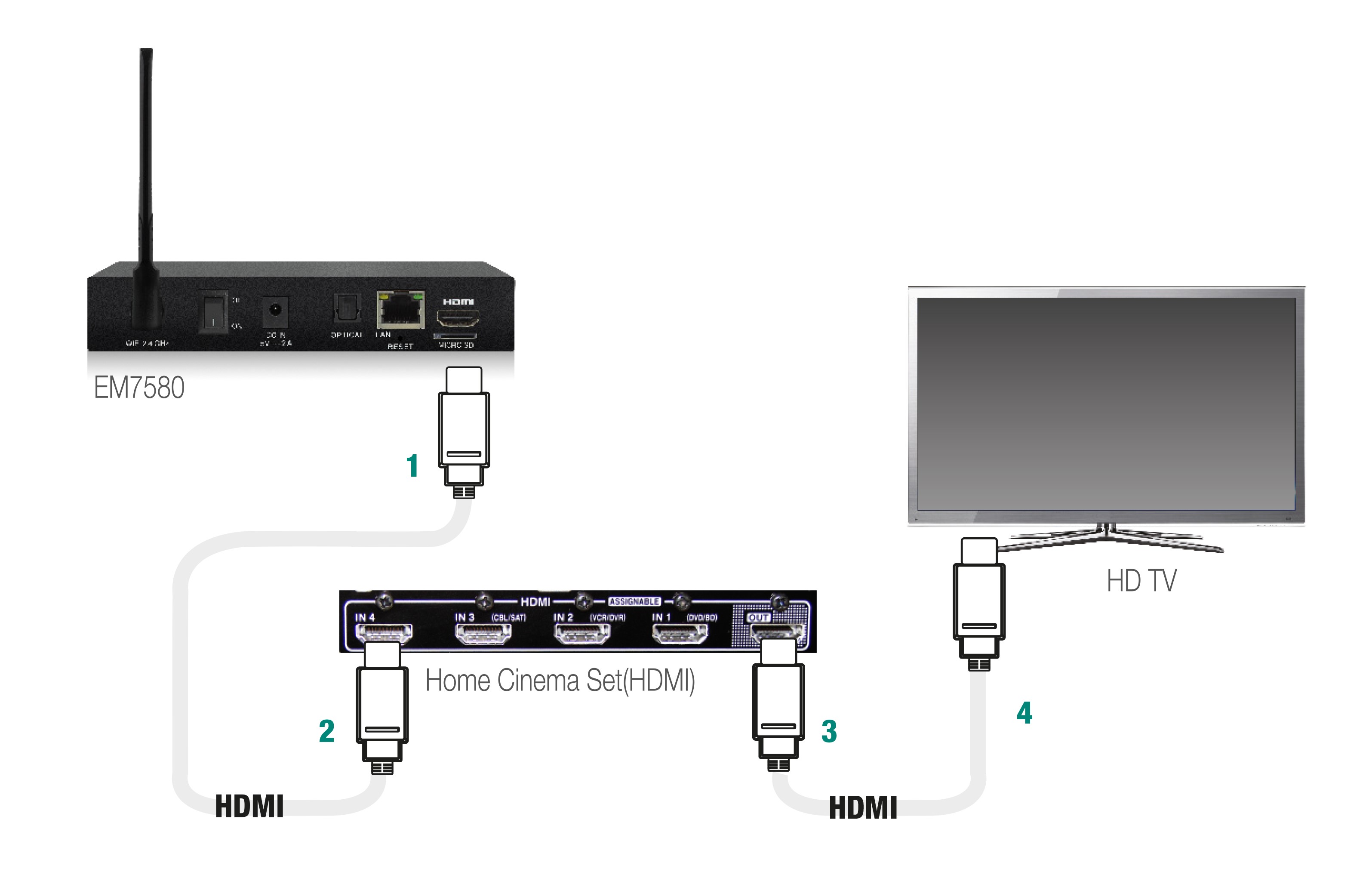

1.1 Connect the EM7680 to an AV receiver by “HDMI”

  1. Connect one side of the HDMI cable to the HDMI output of the EM7680.
  2. Connect the other side of the HDMI cable to the HDMI input of your Home Cinema Set.
  3. Connect a second HDMI cable ( not included ) to the HDMI output of your Home Cinema set.
  4. Connect the other side of the second HDMI cable ( not included ) to an available HDMI input of your TV.

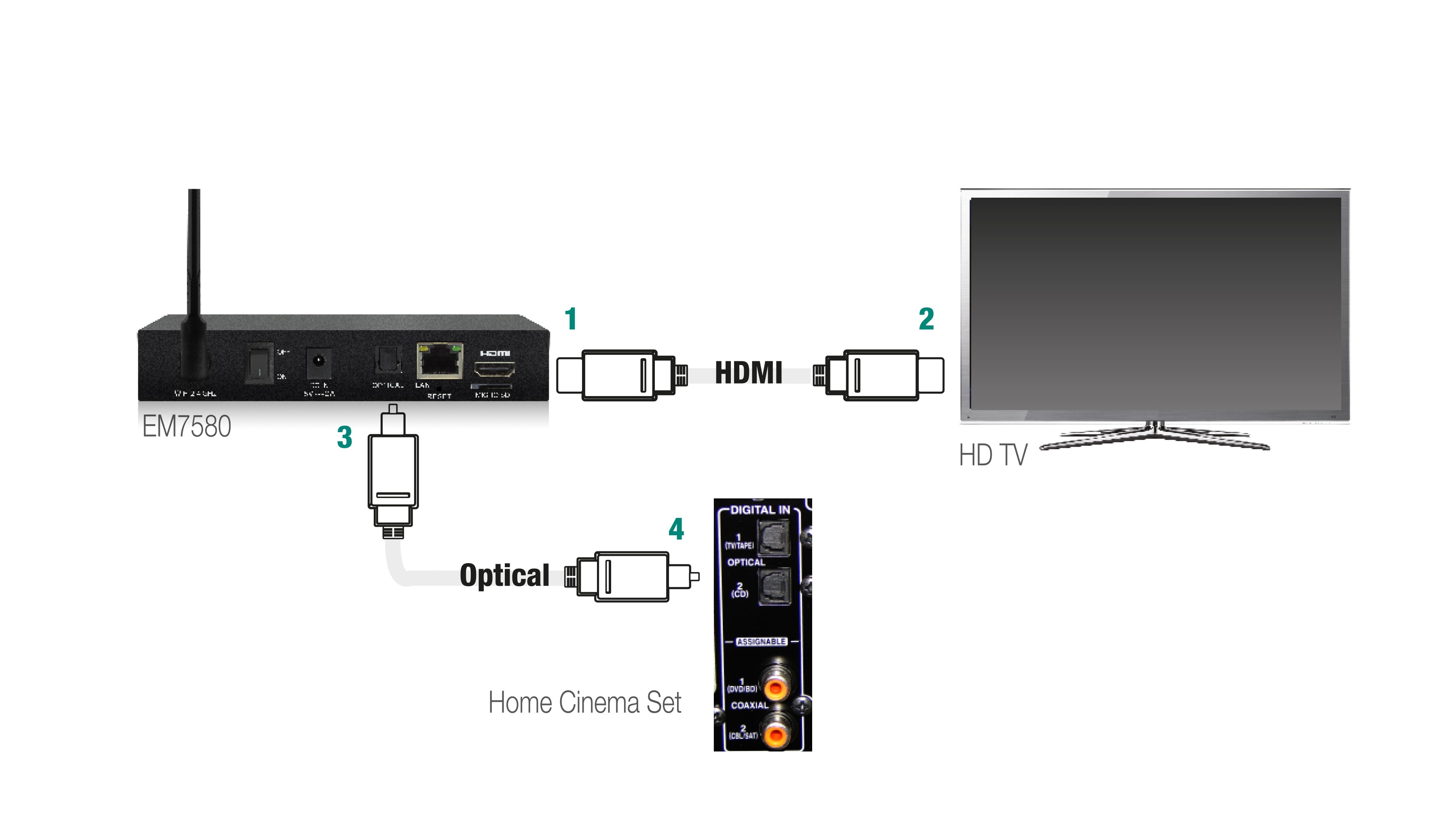

1.2 Connect the EM7680 to an AV receiver by HDMI and optical cable

  1. Connect one side of the HDMI cable to the HDMI output of the EM7680.
  2. Connect the other side of the HDMI cable to the HDMI input of your TV.
  3. Connect the optical cable ( not included ) to the optical output of your EM7680.
  4. Connect the other side of the optical cable ( not included ) to an available optical input of your Home Cinema Set.

2.0 Audio passthrough setup for HDMI and S/PDIF

The following instructions are for both HDMI and S/PDIF the same.

  1. Switch the power switch to “ON” to boot the TV streamer.

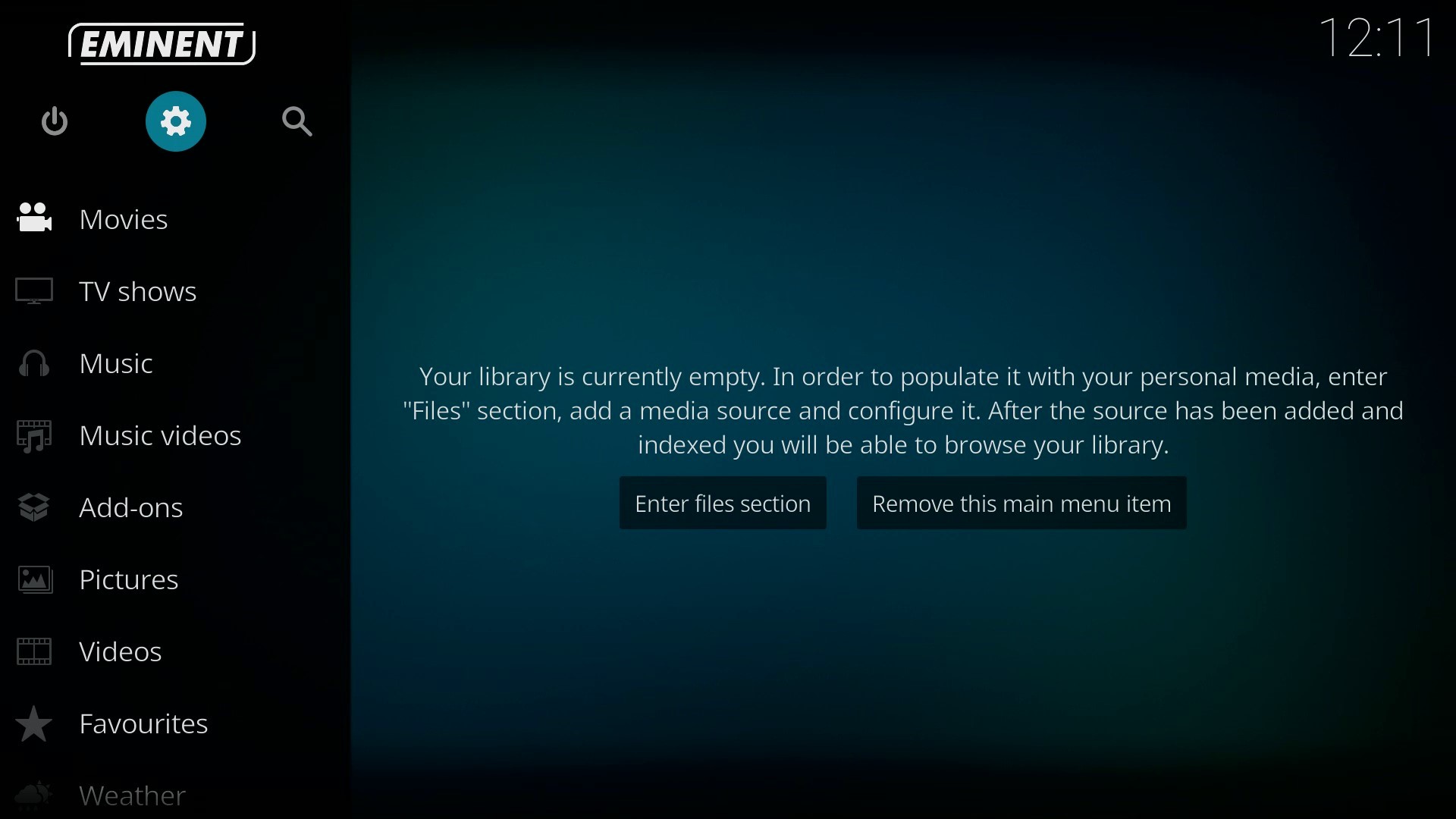

  2. Once the TV streamer has booted, the home screen appears:


  1. Use the navigation buttons to go to the cog-wheel icon and click the “OK” button on your remote control. The following screen appears:

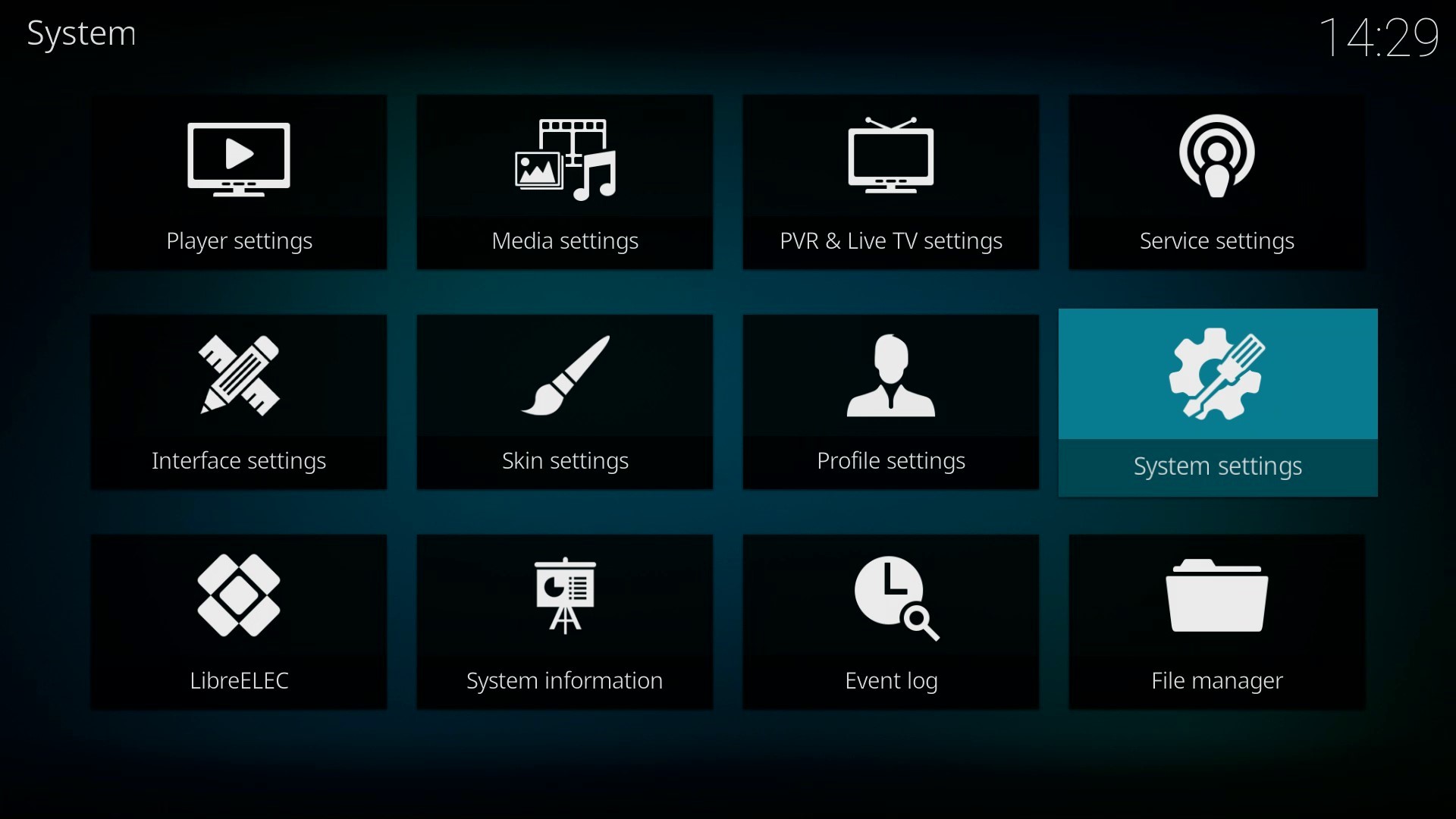

  1. Click on ‘Settings’ with the ‘OK’ button on your remote control. The following screen appears:

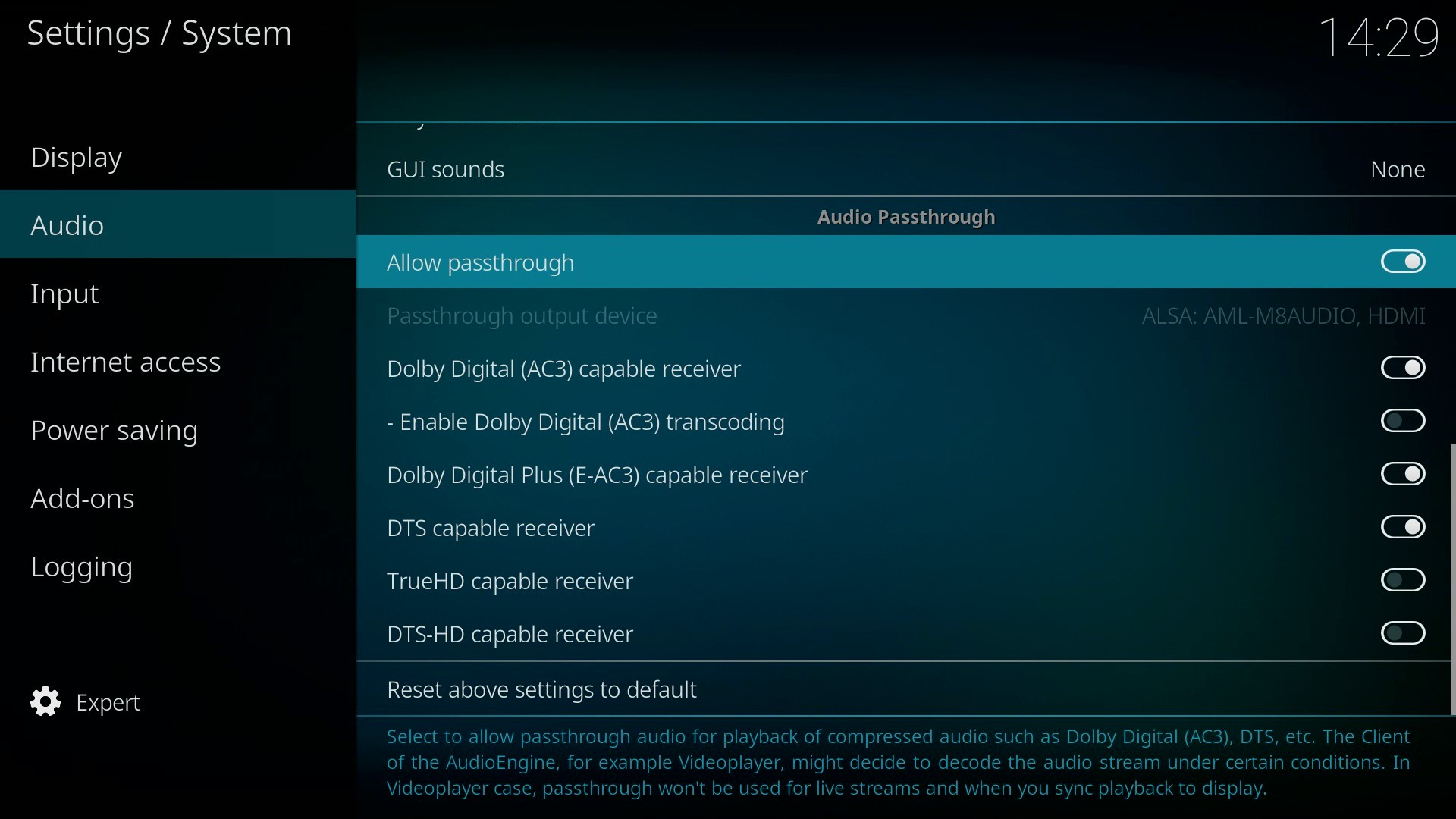

  1. Select “Audio”. Scroll down and press “allow passthrough” and click the “OK” button on you remote control to activate passthrough.
  2. The settings you have just changed are applicable when connected to an AV Receiver or Home cinema set using a HDMI cable or an Optical cable.

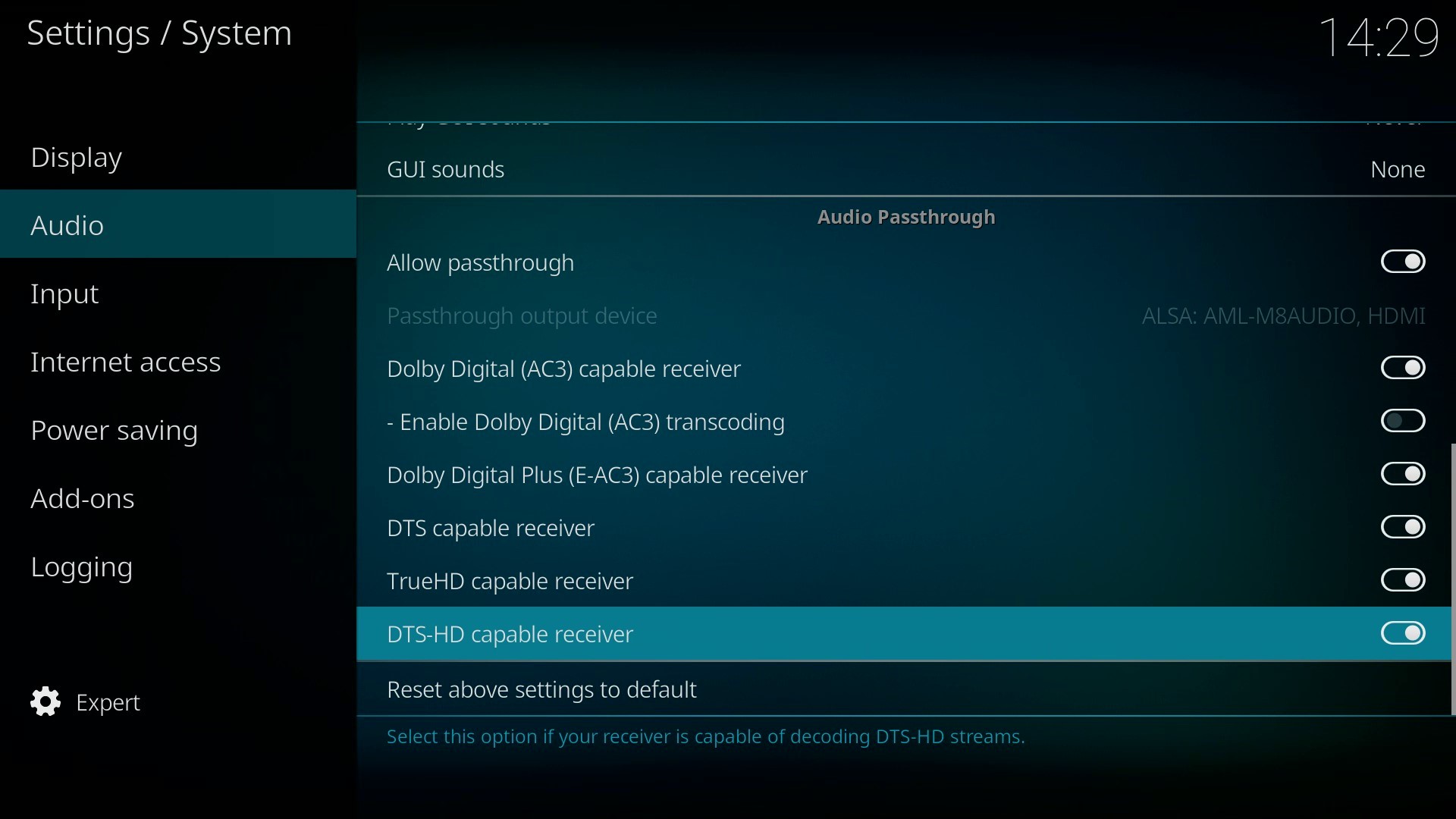

  3. Your EM7680 is now ready to play encoded files like Dolby and DTS through your AV receiver. For Dolby True-HD and DTS-HD audio passthrough enable “True-HD capable receiver” and “DTS-HD capable receiver”, see screen:
  4. Notice: only enable TrueHD and DTS-HD when you have connected the EM7680 via HDMI. When you want to passthrough audio via optical cable then do not enable True-HD capable receiver” and “DTS-HD receiver”.
